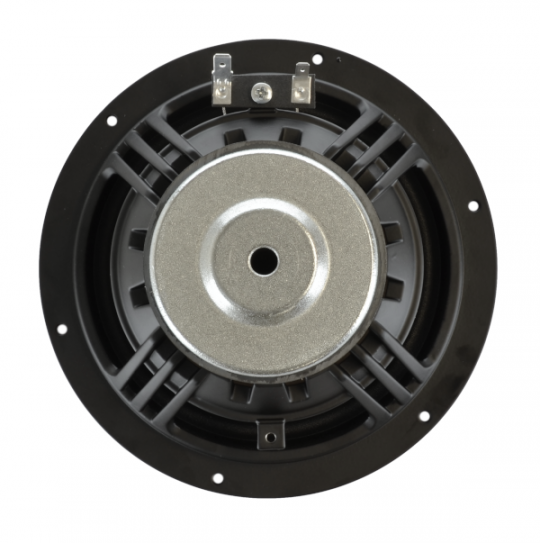

At the heart of every personal audio project lives someone who craves a meaningful experience only music can provide. That someone deserves an experience unmarred by mechanical imperfections and acoustic inconsistencies. That’s why MISCO designed the 93085: A unique, full-range loudspeaker that reproduces music as accurately as possible for high-end, single transducer systems without cross-over requirements.
To achieve faithful reproduction, the 93085 uses a hard fiber dual-cone, and a cotton spider to optimize dispersion and damping capacities for an ideal transient response. Along that is an EBP of 86 to fit within either a sealed, or vented enclosure, allowing you to apply your personal listening preferences to this driver’s strong bass reflex. If you need true audio fidelity, then this is the speaker for you.
Oaktron by MISCO is a premium line of high performance, ready-to-ship transducers and drivers for a wide variety of applications. From elegantly simple to highly specialized designs for unique and demanding applications, there is an Oaktron loudspeaker perfectly suited for your needs.
| Brand Name | Oaktron by MISCO |
|---|---|
| Model # | 165-FR08-04 |
| Size, Nominal (inch & mm) | 6" |
| Shape of Speaker | Round |
| Speaker Type | Full Range |
| Application | Home Audio |
| Environment | Indoor |
| RoHS Compliant | Yes |
| Nominal Impedance (Z) (Ω) | 8 |
| Rated Power IEC268-5 (W) | 30 Watts |
| Rated Impedance (Ω) | 8 |
| Continuous Power (W) | 30 |
| Program Power (W) | 60 |
| Frequency Range (Hz) | 45 - 14,000 |
| Sensitivity (dB SPL) ¹ | 93 |
| Resonant Frequency (Fs) (Hz) | 45 |
| DC Resistance (Re) (Ω) | 7.3 |
| Voice Coil Inductance (Le) (mH) | 0.42 |
| Mechanical Q Factor (Qms) | 10.52 |
| Electrical Q Factor (Qes) | 0.52 |
| Total Q Factor (Qts) | 0.50 |
| Mechanical Resistance (Rms) (kg/s) | 0.22 |
| Compliance Equivalent Volume (Vas) (L) | 48.69 |
| Suspension Compliance (Cms) (mm/N) | 1.54 |
| Surface Area of Diaphragm (Sd) (cm²) | 149.6 |
| Moving Mass (Mms) (gm) | 8.3 |
| Magnetic Gap Height (mm) | 6.3 |
| Coil Winding Height (mm) | 8.6 |
| Maximum Linear Excursion (Xmax) (mm) | 1.2 |
| Motor Force Factor (BL) (T•M) | 5.7 |
| Efficiency (η₀) (%) | 0.8 |
| Efficiency Bandwidth Product (EBP) (Fs/Qes) | 86.2 |
| Basket Type | Aluminum |
| Terminal Size (mm) | 6.4 x 0.8 mm / 4.7 x 0.5 mm |
| Voice Coil Diameter (mm) | 25.81 |
| Voice Coil Wire Material | Copper clad aluminum |
| Voice Coil Former Material | Kapton |
| Voice Coil Winding | 2 layer, round wire |
| Magnet Material | Ferrite |
| Magnet Weight (gm) | 283.5 |
| Cone Body Material | Paper |
| Cone Surround Material | Treated cloth |
| Dust Cap Material | Paper |
| Spider Material | Cotton |
| Net Weight (kg) | 1.02 |
| Technical Notes | ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance |
